FDS Ground Friction Line System

Place of Origin : China

Brand Name : CEI-Kinte

Certification : ISO9001/FEM/ISO14001/OHSAS 18001

Model Number : Customized

MOQ : Negotiable

Price : Negotiable

Packaging Details : Packed with plastic films and wrap with strips

Delivery Time : According to customer's requirement

Payment Terms : Negotiable

Supply Ability : Strong production capacity

R&D : Professional R&D Team

Manufacturing : In-house

Equipment : Automation

Flexibility : High

Conveyor efficiency : High

Maintenance : Easy to maintain

Service life : Long

Human engineering : Ergonomics

Contact Now

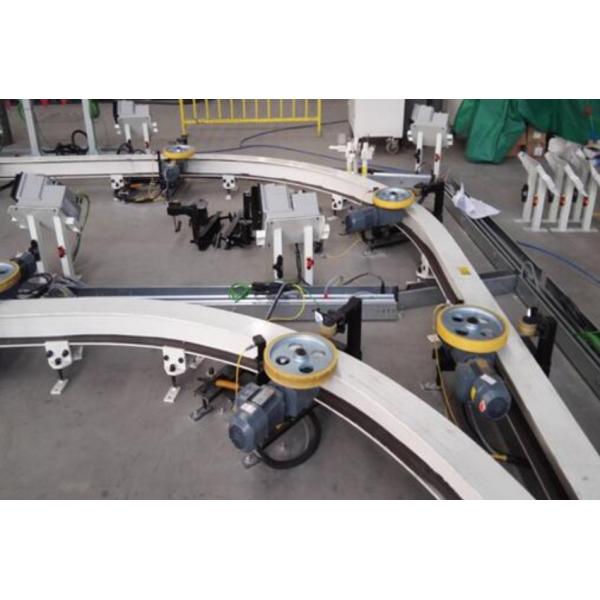

FDS Ground Friction Line System

FDS friction drive conveying system is an intelligent conveying system suitable for flexible automatic production. The driving mechanism is independently designed as a unit, with stable operation and convenient maintenance. The space layout of the whole system is flexible and the noise is low. FDS friction lines can be divided into ground friction lines and air friction lines.

System Features:

The storage capacity of the line body is relatively large, and it has a strong adaptability to production stoppage

The equipment unit is relatively simple and easy to maintain

The system load is small, and the operation is light and stable

Friction Conveyor (FDS) is a form of conveying that uses friction to drive objects to be conveyed. It is one of the commonly used forms of logistics conveyance. The application of the friction conveyor in the car factory also has a variety of novel structural application forms. Our company has a number of patented technologies in the field of friction conveyors, and is at the forefront of domestic counterparts.

Comparison with accumulative chain and sliding system

1) High utilization rate of space Since no chain is used, there is no empty return chain, which can make full use of the plane space of the factory building.

2) The line layout is simple

The friction line layout is simple. The track layout system of the friction line is simple, and there are no wiring problems such as return empty chains.

The layout of the skid line is complicated, and it needs to be supported by auxiliary equipment such as jacking roller bed, chain transfer, rail transfer and so on. The layout of the back-to-empty chain must be considered when wiring the accumulation chain.

3) Low noise

There is no noise caused by the impact of the friction line during operation. However, the impact noise of the accumulator chain in operation is large, especially when the conveyor line speed is 12-18 m/min, the noise is relatively large, which affects the working environment of workers.

4) High conveying speed

The conveying speed of the friction line can be selected according to the process beat within the line speed range of 0~30m/min.

However, the conveying speed of the product chain can only be within the linear speed range of 0~18m/min. Friction lines are more suitable for large-scale production of steel rings in fast-paced depots.

Due to the fast conveying speed of the friction line, compared with the product chain, it can save the total number of trolleys or spreaders under the same premise of producing steel rings.

5) Low energy consumption

The motors in each driving device of the friction line generally have a power of 01~025Kw. Due to the relay operation mode, all motors do not need to run at the same time, so the energy consumption is low.

Because the product and release chain adopts the continuous operation mode of the whole line, no matter how many conveying products are in operation, the high-power motor needs to run continuously, so the energy consumption is relatively high.

Comprehensively considering the use of friction lines and accumulation chains can save 30% of energy consumption.
