High Speed Roller Bed

  • 1
  • 2

Place of Origin : China

Brand Name : CEI-Kinte

Certification : ISO9001/FEM/ISO14001/OHSAS 18001

Model Number : Customized

MOQ : Negotiable

Price : Negotiable

Packaging Details : Packed with plastic films and wrap with strips

Delivery Time : According to customer's requirement

Payment Terms : Negotiable

Supply Ability : Strong production capacity

R&D : Professional R&D Team

Equipment : Automation

Flexibility : High

Management : Plant management system

Workshop : Press Shop/Body Shop/Paint Shop/Assembly Shop

Plant planning : Overall

Manufacturing : In-house

Production Line : New Line/Renovation & Upgrading

Contact Now

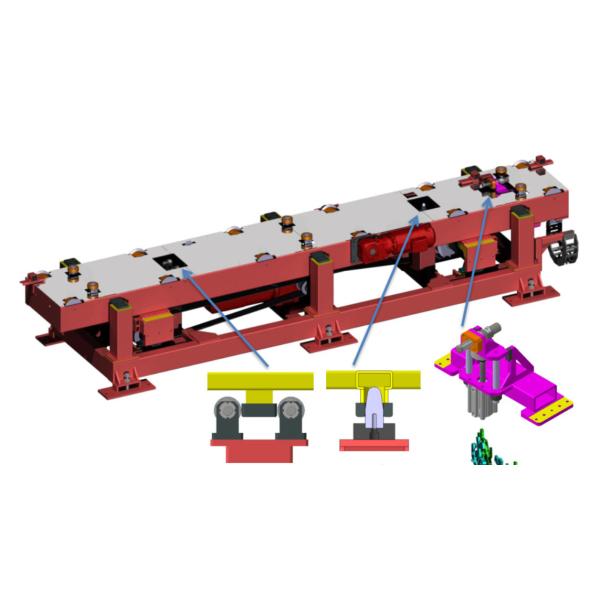

High speed roller bed

The high-speed roller bed has the characteristics of fast speed, high positioning accuracy, multiple safety guarantees, compact structure, and low price. It is used for high-speed conveying of car bodies in the body-in-white welding production line.

Compared with the existing technology, the high-speed roller bed developed by our company has a short cycle time, only 5 seconds for conveying a distance of 6 meters, and a total of 3 seconds for the roller bed to rise and fall; equipped with a cam lifting mechanism, the movement is stable, the positioning is accurate, and the repositioning The complex accuracy is ±0.1mm; the bed body of the roller bed is formed by sheet metal bending, which is light in weight and has a large load; the design of the narrow body of the roller bed ensures good welding accessibility; the overtravel protection device equipped with hydraulic buffer function ensures the operation of the roller bed Safety.

The high-speed roller bed conveying device is equipped with multiple sets of proximity sensor switches for signal feedback, and controls the start, acceleration, operation, deceleration, stop and positioning of the conveying motor and the lifting motor through PLC to realize high-speed conveying and positioning of the trolley and the body; deceleration The motor is installed on the side of the roller bed body, with modular design, convenient installation, commissioning and maintenance; the accompanying fixture is adopted, which does not require line edge fixtures and saves the action time of line edge fixtures.

Technical parameters of high speed roller bed
Horizontal conveying time 5.0s Repeat accuracy ±0.1 Workpiece + roller bed + trolley 2000KG
Total lifting time 3.0s Horizontal stroke 6000mm Load (workpiece weight) 600KG
Conveying beat 8.0s Vertical stroke 100~500mm Bed width 650mm

High Speed Roller BedHigh Speed Roller Bed
